FORGED 1560
FORGED 1560 is a premium POS that perfectly balances solid performance and sophisticated design. Designed for food service and retail environments, it features a 15.6-inch display and high-performance Intel 13th generation CPU, as well as excellent water and dust resistance, slim bezel, and various installation options. The slide-in expandable I/O box is designed to easily add interfaces according to the project environment, and provides flexible and rich connectivity with various port configurations including powered USB.
REDEFINING RUGGED ELEGANCE
  • Aluminum die casting
  • Ultra slim bezel & curve
  • Intel 13th generation
    high-performance processor
  • Slide-in type expansion
    I/O box
  • Enhanced durability with
    water and dust resistance
  • Rear open RAM/SSD
    replacement structure
  • VESA mounting and various
    installation options
  • Quick installation/
    maintenance
DISPLAY
15.6” Premium Display

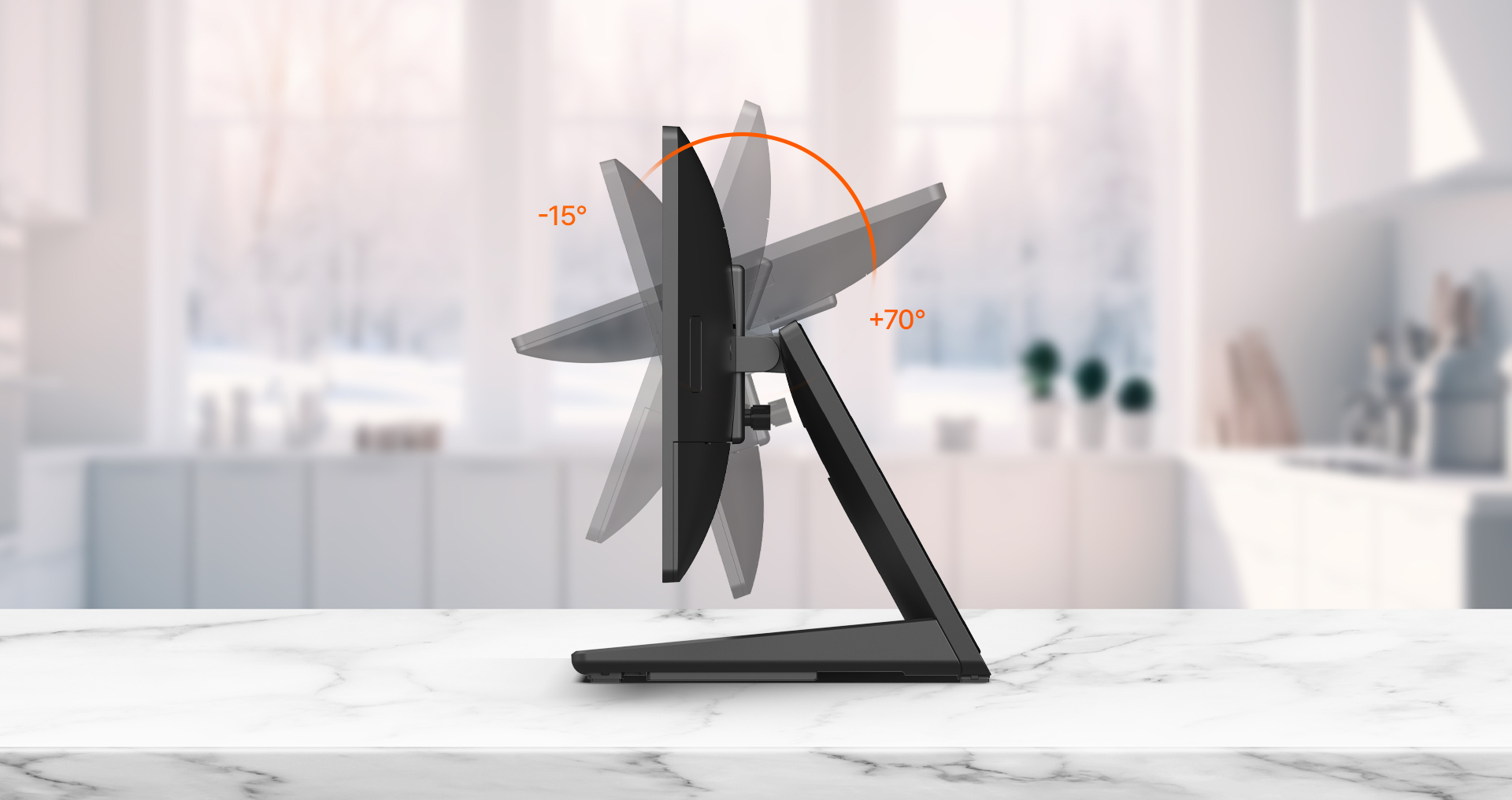

For Touch Angle Adjustment
FORGED 1560 provides a sophisticated visual that harmonizes with store interiors through a 15.6-inch wide display with thin bezels and restrained curves. The top and left and right bezels are the slimmest, increasing screen concentration and creating a luxurious impression. The front of the display is made of high-strength tempered glass to enhance durability and clarity, and the adjustable touch angle provides optimal usability in various work environments.
  • 15.6"
    TFT LCD / PCAP Touch
  • 350
    350cd/㎡ brightness, Backlight
  • 1920 X 1080
    Resolution
  • 7H
    Reinforced glass monitor
PROCESSOR
More powerful and
faster performance
FORGED is equipped with Intel 13th generation Core i5/i3 processors to provide powerful performance that can quickly process complex tasks.It operates stably even in crowded store environments, and you can implement a system optimized for the business environment with customer-tailored configurations.
  • Intel® Core™ i5-1335U
  • Intel® Core™ i3-1315U
DESIGN
Minimal design that adds
elegance to simplicity
  • FORGED 1560 has taken POS design to the next level with its 15.6-inch wide screen, solid square body, and stable stand configuration. The ultra-slim bezel and refined curved thickness give it a sophisticated and modern impression, and the high-quality fabric pattern applied to the rear stand adds a sensual detail. It supports VESA mounting, so it can flexibly respond to various installation environments such as wall mounting, arm, and desk mounting, satisfying both practicality and style.
KEY FEATURES
BUILT TO LAST, DESIGNED TO PERFORM

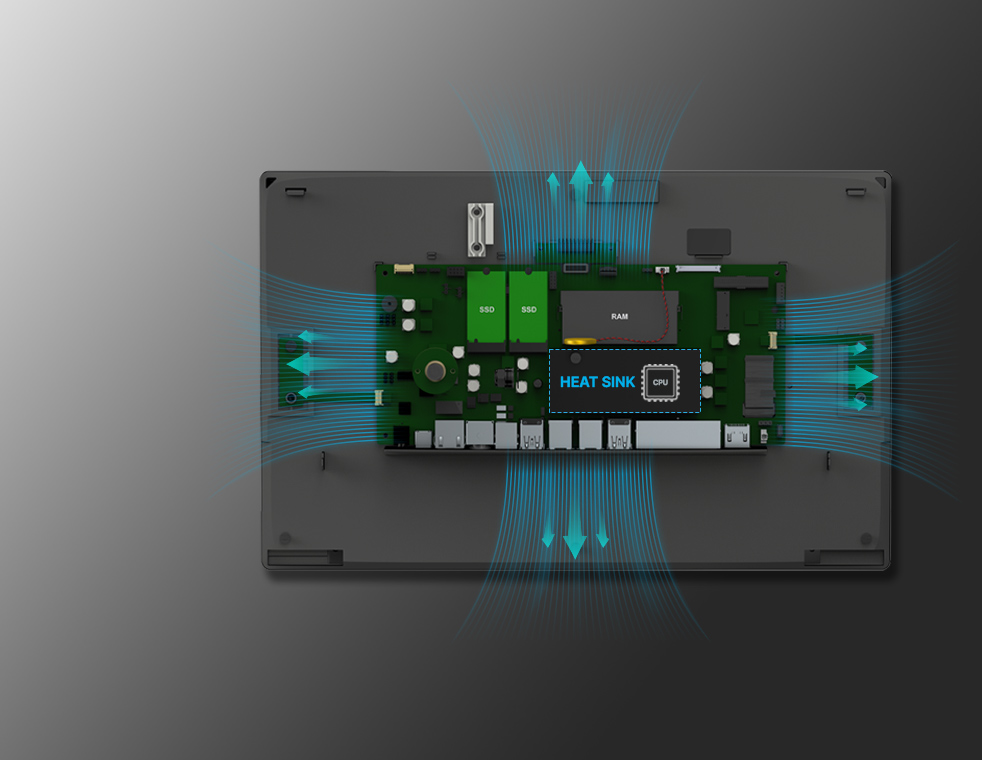

Fanless Aluminum Heat Dissipation Design
FORGED has adopted a fanless thermal management system that enables efficient heat control without a separate fan. It evenly distributes heat throughout the aluminum case, enabling stable operation without noise, and minimizes internal dust inflow, thereby enhancing long-term product reliability and durability. This design provides comfort and convenience of maintenance in the POS operating environment.
Modular Expansion I/O Box
The hidden slide-in I/O box at the bottom allows for easy expansion according to customer needs while maintaining design integrity.

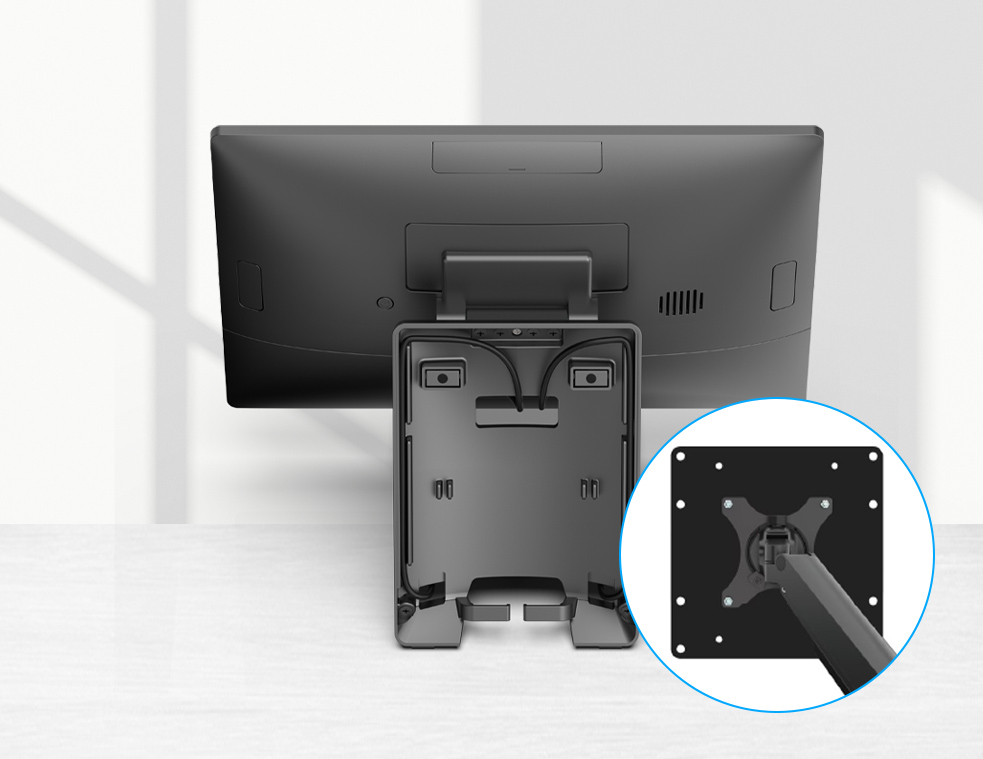

Easy-to-maintain structure,
flexible installation
You can directly replace the RAM and SSD by opening the back cover, making it easy to upgrade and maintain. FORGED is basically equipped with a VESA mount, so it can be flexibly installed in various environments such as kiosks, SCOs, and wall mounts.
CONNECTIVITY
Powerful expandability
without compromising design
FORGED supports various ports including a powered USB port, and can be expanded when needed through a modular external I/O box. You can connect various peripherals according to the project environment without compromising the design integrity.
PERIPHERALS & OPTIONS
Customized options for
every store
Supports various peripherals and options to enhance user convenience, such as IC/MS card readers, second displays of various sizes, and VFDs. In particular, FORGED can be directly connected to the main body without a separate cable when connecting a second display, making wiring simple and installation easy.
  • 10.1", 15.6"
    2nd Display
  • VFD
    Customer Display
Applications
It is flexible enough to fit a variety of environments, including walls, desks, and kiosks, and is optimized as an all-in-one POS for the retail and food service industries. It is designed to maximize performance and functionality while minimizing installation space, taking customer experience and store operations to the next level.

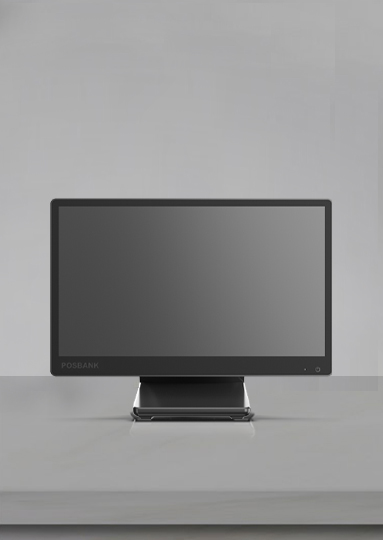

  • Counter Top

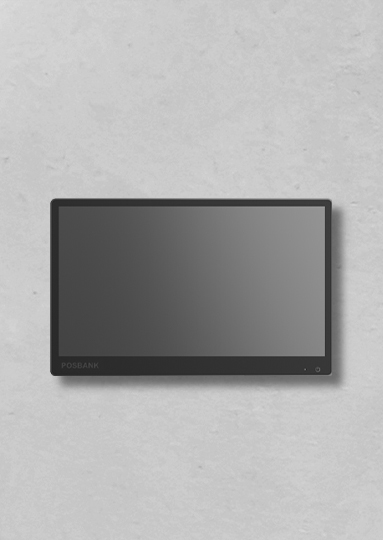

  • Wall Mount
FORGED RL-1560
FORGED RL-1560
FORGED RL-1560
System
  • Processors
    Intel® Core™ i3-1315U Processor 10M Cache, up to 4.50 GHz
    Intel® Core™ i5-1335U Processor 12M Cache, up to 4.60 GHz
  • Chipset
    Intel® Raptor Lake
  • Memory
    4GB Standard (Max. 64GB), DDR4 3200 MT/s, Socket 1 x SODIMM
  • Storage
    1. Form Factor
    NVMe M.2 2242-D2-M (No capacity limit.)
    2. Mountable quantity: Up to 2 units can be installed.
    * Factory Default: 1 x NVMe M.2 2242 128GB
  • RAID
    RAID 0,1
  • Operating Systems
    Windows 10 IoT Enterprise LTSC: Version 21H2 or higher
    Windows 11 IoT Enterprise LTSC
  • Software
    -
  • Printer
    -
  • Audio
    HD Audio Codec
Display
  • Type
    15.6" FHD TFT LCD, LED Backlight
  • Resolution
    1920 x 1080
  • Brightness
    300 cd/m² (typ.)
  • View Angle (U/D/R/L)
    -
  • Touchscreen
    Projected Capacitive Touch, AF
Interface
  • Display
    2 x Displayport (HDMI / USB-C Type(Alt-Mode))
  • USB
    1 (1 x USB 2.0)
    3 (3 x USB 3.0)
    1 (1 x USB C-Type)
    1 (24V Powered USB)
    1 (14V Powered USB)
    *12V/24V Powered USB can be changed to USB 2.0 depending on customer needs
  • PS/2
    -
  • Serial
    3 (COM1~3 RJ45, Full Signal)
  • CashDrawer Port
    1 x RJ-12 (Integrated circuit GPIO)
  • LAN
    Gigabit Ethernet (RJ-45)
  • Audio
    1 x Line out
  • Power DC-IN
    -
  • MSR
    -
  • VGA
    -
  • HDMI
    -
  • SD Card Slot
    -
  • Extension Slot
    -
  • OTG
    -
Power
  • Power Supply
    - Adapter 24V/6.35A (DIN 3 Pin Jack)
    - Adapter 24V/11A (Stand I/O Option) (DC 2.5pi Jack)
Physical & Environmental
  • Operating Temperature
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
  • Storage Temperature
    -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
  • Dimensions (W x D x H)
    (W)365 x (D)211 x (H)281 (mm), (W)14.4 x (D)8.3 x (H)11.1 (in)
  • Packing Dimensions (W x D x H)
    (W)470 x (D)300 x (H)350 (mm), (W)18.5 x (D)11.8 x (H)13.8 (in)
  • Net Weight
    3.3kg
  • Packing Weight
    4kg
  • Certification
    CE, FCC, KC
  • Color
    Black / White
Options & Peripherals
  • Display
    -
  • Touchscreen
    -
  • 2nd Displays
    - 2nd Display (9.7” (1024x768))
    - 2nd Display (10.1" (1280x800))
    - 2nd Display (13.3” (1920x1080))
    - 2nd Display (15" (1024x768))
    - 2nd Display (15.6” (1920 x 1080))
    - VFD (2 Lines x 20 Columns)
  • Customer Display
    -
  • VGA Port
    -
  • I/O Expansion
    Stand I/O
    1 (1 x USB C-type)
    * For communication with the main system. (Not a memory connector)
    1 (24V Powered USB)
    1 (12V Powered USB)
    * 12V/24V Powered USB can be changed to USB 2.0 depending on customer needs.

    Stand I/O Serial
    2 (COM A, B RJ45, Full Signal)
  • Storage
    M.2 2242 128GB (NVMe)
  • Integrated Printer
    -
  • Magnetic Stripe Reader
    Comply with ISO 7811, Support 1 & 2 & 3 Track
  • Smart Card Reader
    EMV Level 1
  • SD Card Reader
    -
  • Multi Reader
    -
  • Dallas
    Dallas i-button Reader
  • Fingerprint
    Yes
  • System Fan
    -
  • Battery
    -
  • Camera
    -
  • Wall Mount Kit
    VESA-Compatible, 75 x 75(mm), 100 x 100(mm)
  • Serial Conversion Cable
    RJ-45 to D-sub 9
  • Speaker
    1 x 3W (Mono) (Factory Option)
  • WiFi
    M.2 for WiFi/BT
  • Bluetooth
    -
  • Memory
    -
* Specifications may change without prior notice.
