MAZIC K-2150
MAZIC K-2150 not only achieves excellent performance by applying Android OS and Intel's 12th generation CPUs, but also has a compact and aesthetic design that can be installed on a table and naturally used as an interior item. It is a kiosk that can be installed with a 21.5-inch display without compromising the aesthetics of the store and has excellent functionality.
This supports Intel 13th generation CPU.
FLEXIBLE AND HARMONIOUS IN ANY PLACE OR LOCATION
  • 21.5-inch Full HD
    touch screen
  • Compact countertop
  • Android / Intel’s latest Processors
  • Options
    (printers, cameras, scanners, etc.)
  • MDS
  • Thermal management
    structure design
  • Accessible and
    practical design
  • Convenient maintenance
DISPLAY
PCAP Multi-Touch(10 Points)
True-Flat(Bezel-Free)
By applying PCAP touch, which supports accurate touch recognition, we provide customers with an accurate and easy feeling of use. In stores, promotional images or videos can be shown on the 21.5-inch display to the store's customers' waiting screen.
  • 21.5”
    TFT LCD / PCAP Touch
  • 250
    250 cd/m² (typ.) Brightness LED Backlight
  • 1080 x 1920
    Full HD Resolution
  • 3000
    3000 (typ.) Contrast Ratio
PROCESSOR
Powerful
Performance
Equipped with Android OS and Intel®'s latest high-performance 12th generation processors, it delivers improved speed and powerful performance. You can select a processor to suit your business environment. By using a CPU with 2 to 3 times more stable performance than before, you can quickly process work in crowded stores.
(Available for Intel 13th generation CPU)
  • Intel® Core™ i5-1235U
  • Intel® Core™ i3-1215U
  • Intel® N97
  • Arm Cortex-A72
  • Arm Cortex-A53
DESIGN
IN A SPACE- EFFICIENT
MANNER
  • The primary characteristic of a compact design kiosk MAZIC K-2150 is its small size and minimal footprint. Designed to fit in tight spaces, making them suitable for crowded environments or locations with limited floor space.
KEY FEATURES
STABLE TABLETOP KIOSK WITH BUILT-IN PAYMENT METHODS
Various payment methods
The MAZIC K-2150 has a built-in MSR, NFC, and barcode reader, and is equipped with an EFT terminal bracket, allowing payment functions to be performed in a variety of ways.
A design that highlights the store interior
The thin display bezel and thin sides allow it to be displayed as an element of store interior when placed on a tabletop.

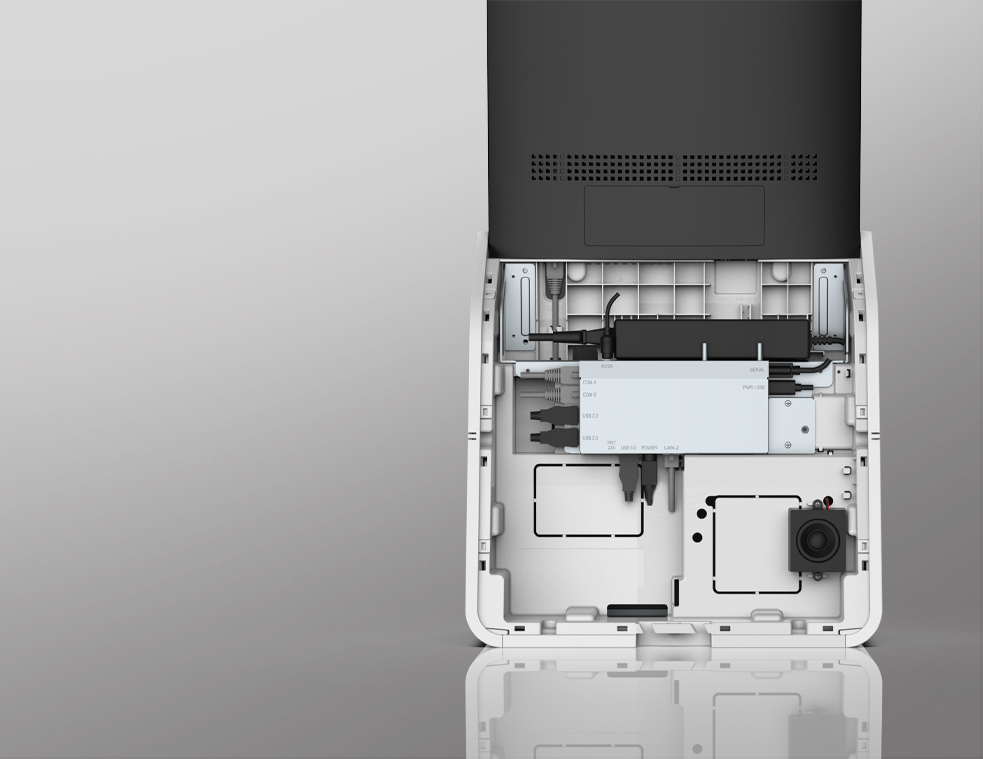

Lower system space
For stable use of the kiosk, all systems are designed at the bottom to increase expandability and convenience of maintenance.

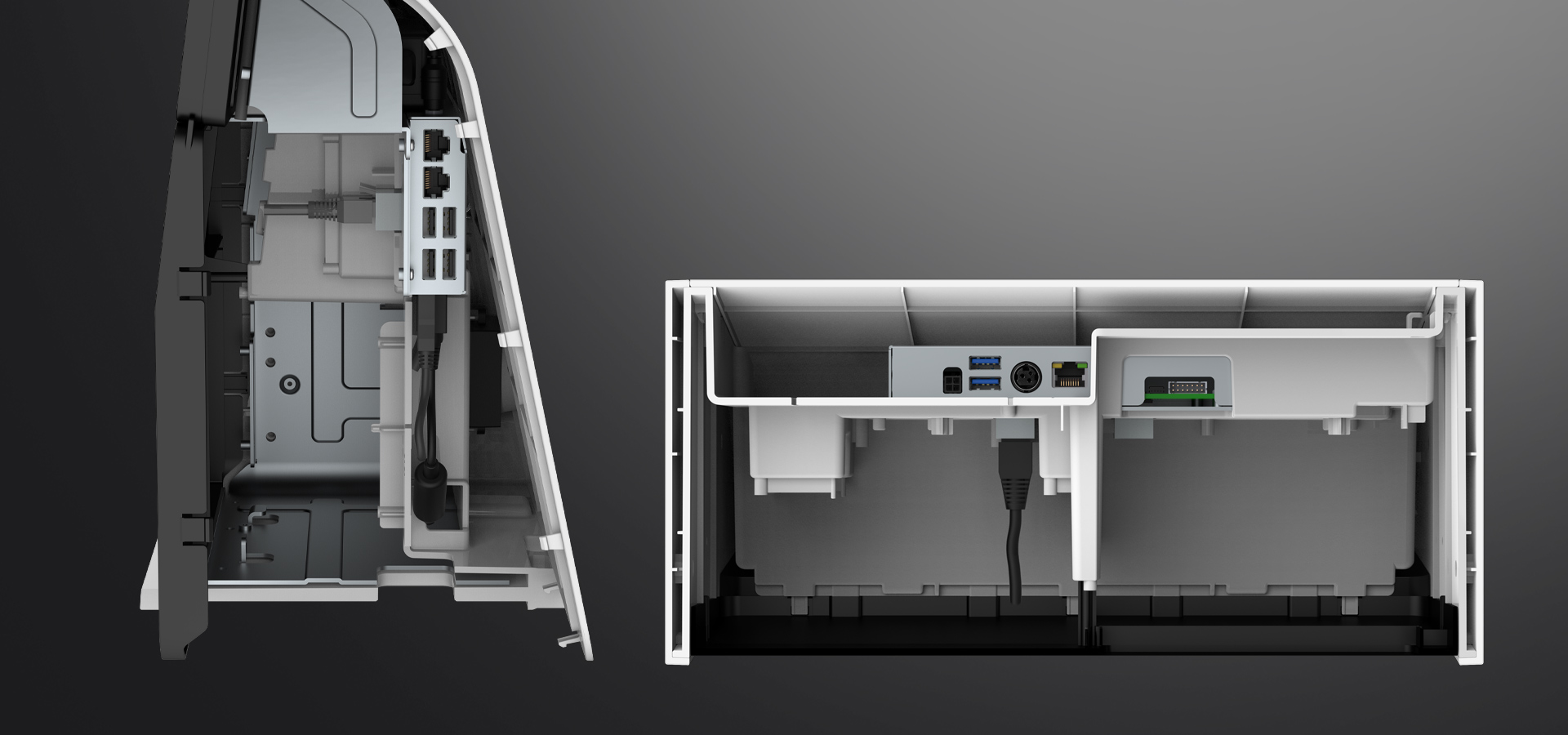

Connectivity
System expandability
& easy maintenance
MAZIC K-2150 allows users to have high system scalability and availability. The input/output ports on the back of the product allow for quick installation and maintenance, saving time and money.
Peripherals & Options
Placement of options to improve UI
Payment functions, including MSR, and printers are arranged in order on the front of the kiosk to increase user interface efficiency.
  • 01INDICATOR LIGHT
  • 02NFC
  • 03SCR / MSR
  • 04MDS
  • 05PRINTER
  • 05SCANNER
Applications
It is installed by placing it on a small table, making it convenient to move and install.
It is manufactured in a compact size so it does not harm the interior of the store space.
MAZIC K-2150
MAZIC K-2150 AP
MAZIC K-2150 AN
MAZIC K-2150 EL
MAZIC K-2150
  • WINDOWS
  • ANDROID
System
  • Processors
    Processors - windows
    [MAZIC K-2150 AP]
    Intel® Core™ i3-1215U Processor 10M Cache, up to 4.40 GHz
    Intel® Core™ i5-1235U Processor 12M Cache, up to 4.40 GHz

    [MAZIC K-2150 AN]
    Intel® Processor N97 6M Cache, up to 3.60 GHz

    [MAZIC K-2150 EL]
    Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz
    Processors - android
    [MAZIC K-2150 A2]
    RK3399 Dual-core Cortex-A72 up to 1.8GHz
    RK3399 Quad-core Cortex-A53 up to 1.4GHz
  • Chipset
    Chipset - windows
    [MAZIC K-2150 AP]
    Intel® Alder Lake

    [MAZIC K-2150 AN]
    Intel® Alder Lake

    [MAZIC K-2150 EL]
    Intel® Elkhart Lake
    Chipset - android
    -
  • Memory
    Memory - windows
    [MAZIC K-2150 AP]
    4GB Standard, DDR4 3200 MT/s, Socket 1 x SODIMM (Max. 64GB)

    [MAZIC K-2150 AN]
    4GB Standard, DDR4 3200 MT/s, Socket 1 x SODIMM (Max. 16GB)

    [MAZIC K-2150 EL]
    4GB Standard, DDR4 3200 MT/s, Socket 1 x SODIMM (Max. 32GB)
    Memory - android
    [MAZIC K-2150 A2]
    4GB Standard, LPDDR4, On-board
  • Storage
    Storage - windows
    1. Form Factor
    NVME M.2 2242-D2-M (No capacity limit.)
    2. Mountable quantity: Up to 2 units can be installed.
    * Factory Default : NVMe M.2 2242 128GB x 1
    Storage - android
    eMMC 32GB, On-board (Max.64GB)
  • Operating Systems
    Operating Systems - windows
    Windows 10 IoT Enterprise LTSC
    Operating Systems - android
    Android 9.0/ 12
  • Audio
    Audio - windows
    HD Audio Codec
    Audio - android
    HD Audio Codec
Display
  • Type
    Type - windows
    21.5" TFT LCD, LED Backlight
    Type - android
    21.5" TFT LCD, LED Backlight
  • Resolution
    Resolution - windows
    1080 x 1920
    Resolution - android
    1080 x 1920
  • Brightness
    Brightness - windows
    250 cd/m² (typ.)
    Brightness - android
    250 cd/m² (typ.)
  • Touchscreen
    Touchscreen - windows
    Projected Capacitive Touch
    Touchscreen - android
    Projected Capacitive Touch
  • Response
    Response - windows
    20 ms
    Response - android
    20 ms
  • Contrast Ratio
    Contrast Ratio - windows
    3000 (typ.)
    Contrast Ratio - android
    3000 (typ.)
Interface
  • USB
    USB - windows
    External
    6 (USB 3.0 x 2, USB 2.0 x 4)
    Internal
    3 (USB 2.0 x 3 (Reserved for MSR, SCR, Printer)
    USB - android
    External
    6 (USB 3.0 x 2, USB 2.0 x 4)
    Internal
    3 (USB 2.0 x 3 (Reserved for MSR, SCR, Printer)
  • Serial
    Serial - windows
    External
    2 [COM10, COM 11( RJ-45, Full Signal)]
    Internal
    2 (COM7 MDS(Motion Detection Sensor) (COM12 Tx/Rx only, Reserved for SCR) (COM13 Reserved for Printer)
    Serial - android
    External
    2 [COM10, COM 11( RJ-45, Full Signal)]
    Internal
    2 (COM7 MDS(Motion Detection Sensor) (COM12 Tx/Rx only, Reserved for SCR) (COM13 Reserved for Printer)
  • LAN
    LAN - windows
    Gigabit Ethernet x 1, RJ-45
    LAN - android
    Gigabit Ethernet x 1, RJ-45
  • Power DC-IN
    Power DC-IN - windows
    3 Pin DIN Jack
    Power DC-IN - android
    3 Pin DIN Jack
Power
  • Power Supply
    Power Supply - windows
    Adaptor 24V, 6.35A
    Power Supply - android
    Adaptor 24V, 6.35A
Pedestal
  • Material
    Material - windows
    Galvanized Steel Plate
    Material - android
    Galvanized Steel Plate
  • Material Thickness
    Material Thickness - windows
    1.2T
    Material Thickness - android
    1.2T
  • Component Access
    Component Access - windows
    -
    Component Access - android
    -
Physical & Environmental
  • Operating Temperature
    Operating Temperature - windows
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
    Operating Temperature - android
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
  • Storage Temperature
    Storage Temperature - windows
    -20 ℃ ~80 ℃ at 10% to 90% Humidity
    Storage Temperature - android
    -20 ℃ ~80 ℃ at 10% to 90% Humidity
  • Dimensions (W x D x H)
    Dimensions (W x D x H) - windows
    System : 333 x 750 x 200 (mm), 13.11 x 29.53 x 7.87 (in)
    Pedestal : 329 x 892 x 200 (mm), 12.95 x 35.11 x 7.87 (in)
    Baseplate : 440 x 8 x 310 (mm), 17.32 x 0.31 x 12.20 (in)
    Dimensions (W x D x H) - android
    System : 333 x 750 x 200 (mm), 13.11 x 29.53 x 7.87 (in)
    Pedestal : 329 x 892 x 200 (mm), 12.95 x 35.11 x 7.87 (in)
    Baseplate : 440 x 8 x 310 (mm), 17.32 x 0.31 x 12.20 (in)
  • Packing Dimensions (W x D x H)
    Packing Dimensions (W x D x H) - windows
    System: 820 X 420 X 280 (mm), 32.28 x 16.53 x11.02 (in)
    Pedestal(Base plate): 950 X 420 X 270 (mm),​ 37.4 x 16.53 x 10.62 (in)
    Packing Dimensions (W x D x H) - android
    System: 820 X 420 X 280 (mm), 32.28 x 16.53 x11.02 (in)
    Pedestal(Base plate): 950 X 420 X 270 (mm),​ 37.4 x 16.53 x 10.62 (in)
  • Net Weight
    Net Weight - windows
    System: 10,560g, 23.28 lbs
    Pedestal: 11,545g, 25.45 lbs
    Base plate: 8,045g, 17.73 lbs
    Net Weight - android
    System: 10,560g, 23.28 lbs
    Pedestal: 11,545g, 25.45 lbs
    Base plate: 8,045g, 17.73 lbs
  • Packing Weight
    Packing Weight - windows
    System: 13,610g, 30.00 lbs
    Pedestal(Base plate): 23,580g, 51.98 lbs​
    Packing Weight - android
    System: 13,610g, 30.00 lbs
    Pedestal(Base plate): 23,580g, 51.98 lbs​
  • Certification
    Certification - windows
    CE, FCC, KC
    Certification - android
    CE, FCC, KC
  • Color
    Color - windows
    White
    Color - android
    White
Options
  • Storage
    Storage - windows
    -
    Storage - android
    -
  • Built-in Printer
    Built-in Printer - windows
    3" Jam-Free Thermal, Max. 250mm/s, Auto Cutter (Interface : Serial, USB)
    Built-in Printer - android
    3" Jam-Free Thermal, Max. 250mm/s, Auto Cutter (Interface : Serial, USB)
  • Barcode Scanner
    Barcode Scanner - windows
    1D, 2D Barcode
    Barcode Scanner - android
    1D, 2D Barcode
  • Camera
    Camera - windows
    5M USB Interface (With Mic, Internal) (Factory Option)
    Camera - android
    5M USB Interface (With Mic, Internal) (Factory Option)
  • Magnetic Stripe Reader
    Magnetic Stripe Reader - windows
    Comply with ISO 7811, Support 1 & 2 & 3 Track
    Magnetic Stripe Reader - android
    Comply with ISO 7811, Support 1 & 2 & 3 Track
  • Smart Card Reader
    Smart Card Reader - windows
    EMV Level 1
    Smart Card Reader - android
    EMV Level 1
  • NFC Reader
    NFC Reader - windows
    MIFARE, FeliCa, ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693
    NFC Reader - android
    MIFARE, FeliCa, ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693
  • Wall Mount Kit
    Wall Mount Kit - windows
    W x H x D : 280 x 200 x 214 (mm), 11.02 x 7.87 x 8.42 (in)
    Wall Mount Kit - android
    W x H x D : 280 x 200 x 214 (mm), 11.02 x 7.87 x 8.42 (in)
  • Speaker
    Speaker - windows
    1 x 5W (Mono)
    Speaker - android
    1 x 5W (Mono)
  • WiFi
    WiFi - windows
    M.2 for WiFi/BT
    WiFi - android
    -
  • Custom Options
    Custom Options - windows
    EFT Terminal Bracket option
    Custom Options - android
    EFT Terminal Bracket option
