POS Peripherals Cash Drawer
ALL PRODUCT
CASH DRAWER
  • EC 335
  • EC 350
  • EC 410
볼 베어링 슬라이드 레인으로 서랍의 흔들림과 소음을 최소화하였으며, RJ12-6 Pin과 USB 케이블을 통해서 전기적 연결을 추가할 수 있습니다.
EC 335
  • 크기 : 335(W) * 335(D) * 90(H)
  • 전면 고액권 투입홀 : 1개
  • 구성 : 4Bill 4Coin
  • 100만회 인출 테스트 완료
  • RJ12-6 Pin / USB2.0 BM 케이블
    (사용환경에 맞춰 변경 가능)
  • 입력값: 12V
KEY FEATURES
기본에 충실한 가성비
  • 스틸 소재
    본체 케이스 / 서랍 케이스
  • 플라스틱 PS 소재
    내함 (머니트레이)
  • 볼 베어링 롤러
  • 서랍 전면
    고액권 투입 홀 1개
  • 서랍 오픈 레버
    3단 키
  • 인하우스
    파우더 코팅
  • 고객이 원하는 전기적 사양 및
    커넥터 주문 가능

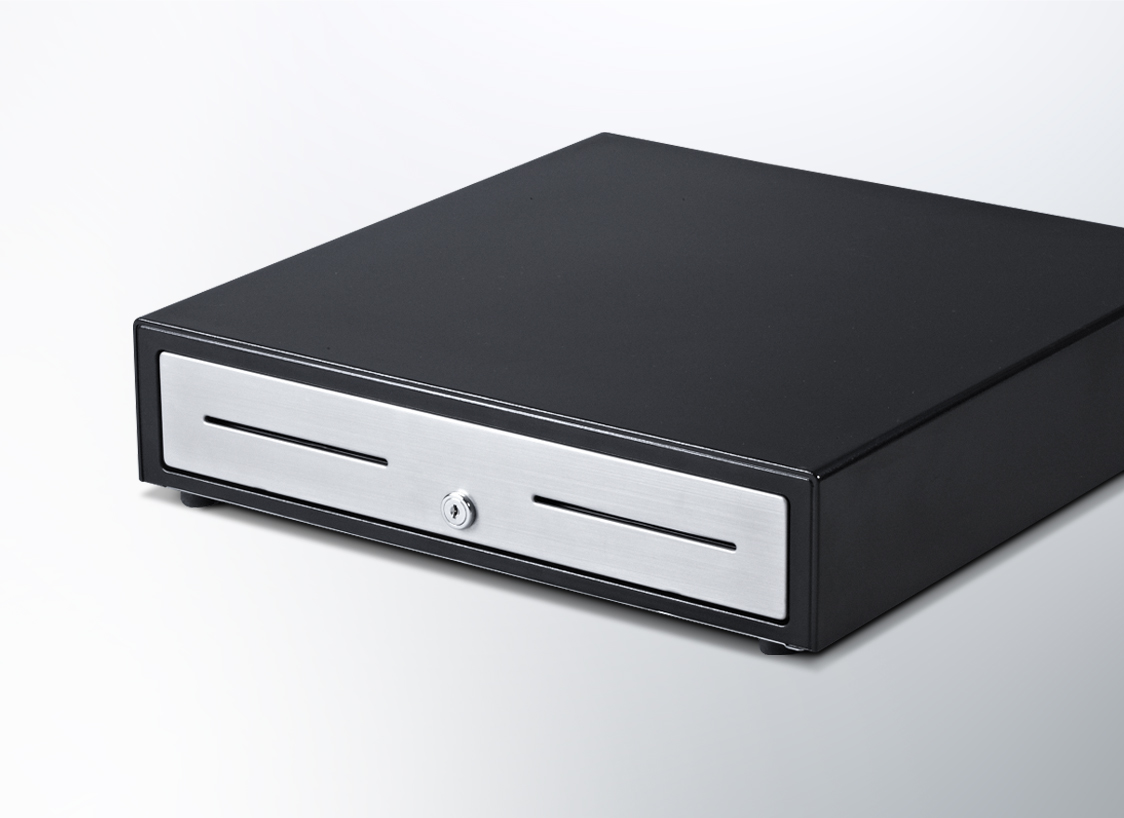

EC 350
  • 크기 : 350(W) * 405(D) * 90(H)
  • 전면 고액권 투입홀 : 2개
  • 구성 : 4Bill 5Coin
  • 100만회 인출 테스트 완료
  • RJ12-6 Pin / USB2.0 BM 케이블
    (사용환경에 맞춰 변경 가능)
  • 입력값: 24V
KEY FEATURES
높은 내구성과 소음 최소화
  • 스틸 소재
    본체 케이스 / 서랍 케이스
  • 플라스틱 PS 소재
    내함 (머니트레이)
  • 볼 베어링 롤러
  • 서랍 전면
    고액권 투입 홀 2개
  • 서랍 오픈 레버
    3단 키
  • 인하우스
    파우더 코팅
  • 고객이 원하는 전기적 사양 및
    커넥터 주문 가능

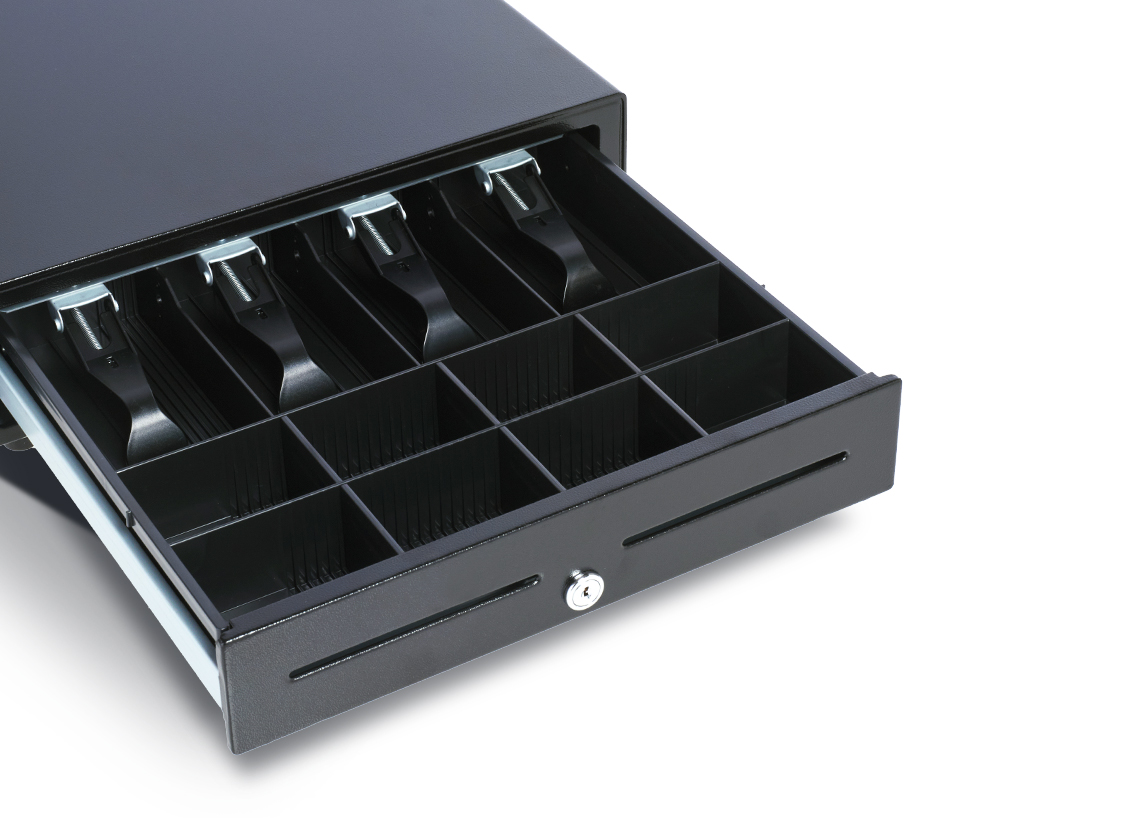

EC 410
  • 크기 : 410(W) * 415(D) * 100(H)
  • 전면 고액권 투입홀 : 2개
  • 구성 : 4Bill 8Coin
  • 100만회 인출 테스트 완료
  • RJ12-6 Pin / USB2.0 BM 케이블
    (사용환경에 맞춰 변경 가능)
  • 입력값: 24V
KEY FEATURES
최대 용량, 뛰어난 내구성
  • 스틸 소재
    본체 케이스 / 서랍 케이스
  • 플라스틱 PS 소재
    내함 (머니트레이)
  • 볼 베어링 롤러
  • 서랍 전면
    고액권 투입 홀 2개
  • 서랍 오픈 레버
    3단 키
  • 인하우스
    파우더 코팅
  • 고객이 원하는 전기적 사양 및
    커넥터 주문 가능
BIGPOS® 2700
SYSTEM
  • Pedestal
    Intel® Core™ i5-7200U (3M Cache, 2.50/3.10 GHz(Turbo), 2 Cores)
    Intel® Pentium® 4415U (2M Cache, 2.30 GHz, 2 Cores)
    Intel® Celeron® 3965U (2M Cache, 2.20 GHz, 2 Cores)
    Intel® Celeron® J1900 (2M Cache, 2.0/2.42 GHz(Burst), 4 Cores), Fanless
    Cortex™- A17 Quad-Core (Up to 1.8GHz)
  • Chipset
    7200U/4415U/3965U Intel® Kaby Lake
    J1900 Intel® Bay Trail
    -
  • Memory
    7200U/4415U/3965U 4GB Standard, DDR4 2133 MT/s, Socket 1 x SODIMM (Max. 16GB)
    J1900 4GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM
    1GB Standard, DDR3L 1600 MT/s, On-board (Max. 2GB Optional)
  • Storage
    7200U/4415U/3965U SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI
    J1900 SATA 2 (3Gb/s) 2.5 inch SSD 64GB, Support AHCI (Celeron)
    eMMC 8GB, On-board (Max. 64GB Optional)
  • Operating
    Systems
    7200U/4415U/3965U Windows 10 IoT Enterprise
    J1900 Windows 7, Windows 8.1, Windows 10 IoT Enterprise, POS Ready 7
    Andoird 7.X (Nougat)
  • Audio
    Realtek ALC662-VD
    Realtek ALC5640
DISPLAY
  • Type
    27" TFT LCD, LED Backlight
    27" TFT LCD, LED Backlight
  • Resolution
    1080 x 1920
    1080 x 1920
  • Brightness
    300 cd/m² (typ.)
    300 cd/m² (typ.)
  • Touchscreen
    Projected Capacitive Touch
    Projected Capacitive Touch
  • Response
    12 ms
    12 ms
  • Contrast Ratio
    3000 (typ.)
    3000 (typ.)
INTERFACE
  • USB
    7200U/4415U/3965U 6 (Rear 2, Back 4, USB 3.0 x 2, USB 2.0 x 4)
    3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera), RJ-45
    J1900 6 (Rear 2, Back 4, USB 2.0 x 6)
    3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera), RJ-45
    6 (Rear 2, Back 4, USB 2.0 x 6)
    3 (Reserved for MSR, SCR/Touch Controller/Camera), RJ-45
  • Serial
    6 (COM 1 with 5V/12V Power Output on 9 Pins, BIOS, Reserved for NFC)
    (COM2~3 RJ-45 , Full Signal), Reserved for Cash Module)
    (COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved)
    (COM5 Reserved for Printer)
    (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR, IC Card)
    6 (COM 1 with 5V/12V Power Output on 9 Pins, BIOS, Reserved for NFC)
    (COM2~3 RJ-45 , Full Signal), Reserved for Cash Module)
    (COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved)
    (COM5 Reserved for Printer)
    (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR, IC Card)
  • LAN
    1 x Gigabit Ethernet, RJ-45
    1 x Gigabit Ethernet, RJ-45
  • Power DC-I
    1 x (3 Pin Connector)
    1 x (3 Pin Connector)
POWER
  • Power Supply
    Adaptor 24V, 6.35A
    Adaptor 24V, 6.35A
PEDESTAL
  • Material
    Galvanized Steel Plate
    Galvanized Steel Plate
  • Material
    Thickness
    1.2T
    1.2T
  • Component
    Access
    Security Locks with 7-Pin Tumbler / Rear Security Door
    Security Locks with 7-Pin Tumbler / Rear Security Door
PHYSICAL & ENVIRONMENTAL
  • Operating Temperature
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
  • Storage Temperature
    -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
    -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
  • Dimensions (W x H x D)
    System : 43 x 88 x 14 cm, 16.9 x 34.6 x 5.5 in Pedestal : 43 x 87 x 14 cm, 16.9 x 34.2 x 5.5 in Baseplate : 60 x 1 x 45cm, 23.6 x 0.39 x 17.7 in Baseplate : 60 x 1 x 41cm, 23.6 x 0.39 x 16.1 in (Counter Top)
    System : 43 x 88 x 14 cm, 16.9 x 34.6 x 5.5 in Pedestal : 43 x 87 x 14 cm, 16.9 x 34.2 x 5.5 in Baseplate : 60 x 1 x 45cm, 23.6 x 0.39 x 17.7 in Baseplate : 60 x 1 x 41cm, 23.6 x 0.39 x 16.1 in (Counter Top)
  • Packing Dimensions (W x H x D)
    System : 57 x 100 x 26 cm, 22.4 x 39.3 x 10.2 in Pedestal : 57 x 100 x 26 cm, 22.4 x 39.3 x 10.2 in Baseplate : 63 x 6 x 48cm, 24.8 x 2.4 x 18.9 in
    System : 57 x 100 x 26 cm, 22.4 x 39.3 x 10.2 in Pedestal : 57 x 100 x 26 cm, 22.4 x 39.3 x 10.2 in Baseplate : 63 x 6 x 48cm, 24.8 x 2.4 x 18.9 in
  • Net Weight
    System : 15kg, 33.0lbs Pedestal : 13kg, 28.6lbs Baseplate : 20kg, 44.1lbs
    System : 15kg, 33.0lbs Pedestal : 13kg, 28.6lbs Baseplate : 20kg, 44.1lbs
  • Packing Weight
    System : 21kg, 46.3lbs Pedestal : 17kg, 37.5lbs Baseplate : 21kg, 46.3lbs
    System : 21kg, 46.3lbs Pedestal : 17kg, 37.5lbs Baseplate : 21kg, 46.3lbs
  • Certification
    CE, FCC, KC
    CE, FCC, KC
  • Color
    High Gloss White, High Gloss Black, Custom Colors Available
    High Gloss White, High Gloss Black, Custom Colors Available
OPTIONS
  • Storage
    2.5 inch SSD 128GB, HDD 500GB, 1TB
    2.5 inch SSD 128GB, HDD 500GB, 1TB
  • Built-in Printer
    3" Jam-Free Thermal, Max. 250mm/s, Auto Cutter (Interface : Serial, USB)
    3" Jam-Free Thermal, Max. 250mm/s, Auto Cutter (Interface : Serial, USB)
  • Barcode
    Scanner
    1D, 2D Barcode
    1D, 2D Barcode
  • Camera
    2M USB Interface (Internal) (Factory Option)
    2M USB Interface (Internal) (Factory Option)
  • Magnetic Stripe
    Reader
    Comply with ISO 7811, Support 1 & 2 & 3 Track
    Comply with ISO 7811, Support 1 & 2 & 3 Track
  • Smart Card
    Reader
    EMV Level 1, 2
    EMV Level 1, 2
  • NFC Reader
    MIFARE, FeliCa, ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693
    MIFARE, FeliCa, ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693
  • Wall Mount Kit
    VESA-Compatible, 100 x 100 mm, 200 x 200 mm
    VESA-Compatible, 100 x 100 mm, 200 x 200 mm
  • Speaker
    2 x 5W (Stereo) (Factory Option)
    2 x 5W (Stereo) (Factory Option)
  • WiFi
    Mini PCIe for Wireless LAN (Core/Pentium)
    USB Dongle (Celeron)
    On Board (Factory Option)
  • Custom Options
    Customer-Assigned EMV Terminal Bracket, Bill/Coin Acceptor, Document Reader (Passports/IDs),
    Ticket/Document Printer, UPS (Uninterruptible Power Supply)
    Customer-Assigned EMV Terminal Bracket, Bill/Coin Acceptor, Document Reader (Passports/IDs),
    Ticket/Document Printer, UPS (Uninterruptible Power Supply)
* Specifications may change without prior notice.
